‍Display plan view and start operation
without 3D design data

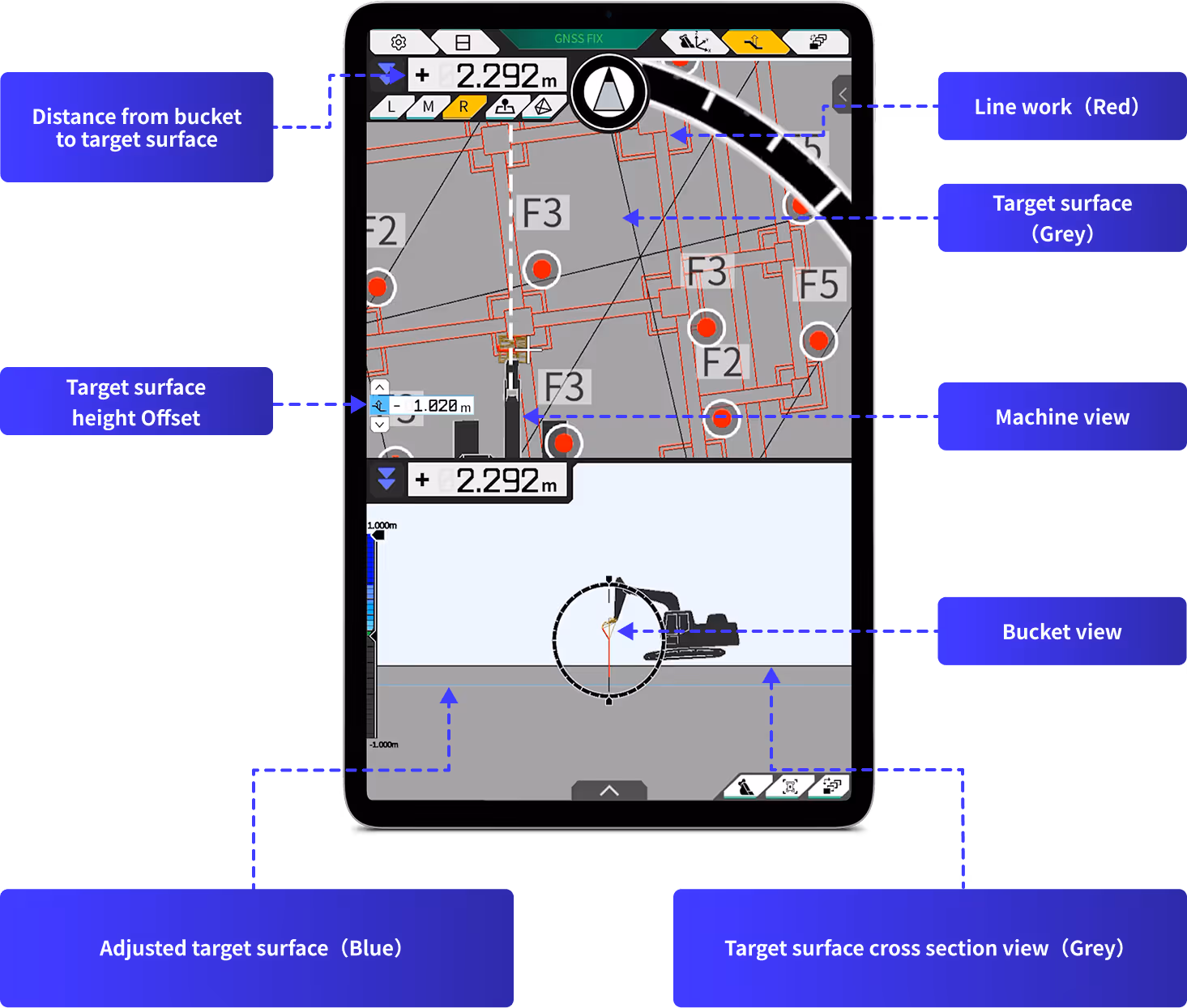

Excavator equipped with Smart Construction 3D Machine Guidance can display plan view in a monitor and provide horizontal positioning and guidance for specified height.

Simple, user friendly
‍interface

Requirements

Plan view
①Correction data
・Ntrip・External radio
②Coordinate system
③Plan view data

Workflow

1 Send a Plan view data

Send plan view data to Smart Construction Pilot which is an application required to operate 3D Machine Guidance.

2 Create a target surface

Place  a bucket's cutting edge to a refence point and create a target surface.

3 Start operation

Let's start using Smart Construction 3D Machine Guidance. You can adjust the target surface height as needed while viewing plan view data.

4 Check As-built

‍Smart Construction 3D Machine Guidance automatically acquires as-built data every day. Acquired data is seamlessly shared with the 3D project management tool, Smart Construction Dashboard, allowing you to check daily as-built data.
